Attaching Stairs to a Deck

The final moment is to connect the stairs to the deck.

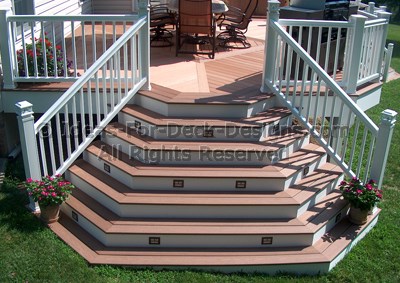

Cascading stair case connected to deck

Every set of stairs has to be connected to the deck somehow.

It is not always done the same way.

Here are the various ways in which you can attache them depending on joist direction or style of the stairs.


Let's get down to business!

Extended Backer Board And Strapping

The framing methods may vary slightly but the essence of the concept remains the same. Extend boards down from the back side of the rim joist.

Install blocking between internal stringers and use option metal strapping if you are wish.

Using backer board and metal straps

This side profile view provides another way to see what is going on.

To attach notched stringers to a deck requires attaching some kind of backer board to the rim joist, increasing the width of the rim joist so the stringer has more material to contact.

Side view

Second Alternative Method

If the joist are 2x10 or 2x12 you may be able to secure the stairs against the lower portion of the rim joist.

Just be aware that if there is to little spacke for the stair horizontal blocking to be safely connected to the rim joist this option has to be re-thought.

Side profile view

Additional blocking would be required if metal strapping is used which would significantly increase the strength of such a connection.

Third Alternative Method - Perpendicular to Joists

If joists are running perpendicular to the stair location, you may wish to employ this method if you are jusing at least a 2x12 stringer.

Side profile between joists

The math changes a little bit for the unit run of the first tread as this diagram shows.

Final Way To Connect An Outside Stringer

Connecting solid stringers where there are no support stringers in the middle of the tread allows you to use metal angle brackets as you see here.

Perspective view of deck
Close up

Remember: The maximum distance treads should span is 36" if they are thick enough. Otherwise, you must add a cut stringer at midspan to provide enough support.

Some Other Great Reading

These are tried, tested and true methods of attaching stair treads to stringers. You have a few styles you can use depending on the look you prefer.
