Build a Fireplace Outdoors

Here's a basic summary of how to build a fireplace outdoors. This has got to be one of the best deck improvement ideas there is.

Now I can understand if you live in a really warm climate 12 months of the year. You may not benefit from an outdoor fireplace.

But if you're like most of us, there are lot's of occasions when the warmth and glow of fireplace built into your deck would add immense enjoyment to your backyard deck.

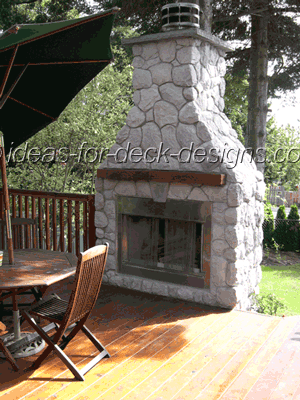

Stone covered outdoor fireplace for a backyard deck

Here's an outdoor fireplace that I am going to describe how to build.

The building process will be broken down into a few steps.

  • Planning
  • Framing
  • Installing Fireplace
  • Gas Connection
  • Masonry Work

Planning

Take some time to decide where you should build your fireplace. This deck was built on a slope, about 3'-4' above ground.

The best location for the fireplace structure was along the side of the deck. The structure was built by first digging four holes 3' deep and pouring cement into 8" tubes to create a solid footing and pier upon which the structure would rest.

Framing

A platform about 5' by 3' at the same level as the deck was supported by 4x4 posts that were anchored to the concrete piers. The 4x4 posts were braced in a truss like fashion to stiffen the elevated platform.

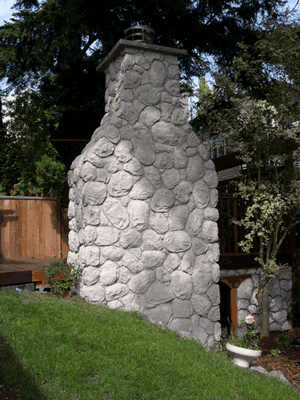

Back view of outdoor fireplace

The next phase of framing was to build the chimney style fireplace using 2x4 material. This created the shape of the structure - a gentle slope as shown in this picture.

There were set minimum heights for the chimney flue and the setback distances for the gas fireplace unit which fit into the structure.

Be sure to read the requirements for your outdoor fireplace before you begin building.

The frame was then sheated with 5/8" fir plywood. Very simple framing and building techniques except be sure to pay attention to the openings and safety feature of the fireplace unit itself.

Installing Fireplace

This was a wood burning ourdoor fireplace but used a natural gas powered burner to quickly light the firewood. A super option! Consider this if you are buying any outdoor type fireplace.

The appliance was made of stainless steel to handle the outdoors - an essential feature if you intend to do this project.

Gas Connection

A natural gas line had already been extended outdoors from the house to feed the gas bbq grill. So an extension was added and run underneath the deck to the new location for the fireplace.

Masonry Work

Stainless steel fireplace appliance and wood mantel piece
Ground view of chimney

A solid timber mantel piece was installed to balance out the heavy appearance of the cultured stone. A small mantel piece would have looked out of place.

Then the entire frame was covered with 15 lbs. felt paper and wire lath was nailed over top. A scratch coat of mortar was applied and allowed to dry.

Now the fun began as each cultured stone was individually selected and dry fitted into place to determine the best fit. Some stones had to be chipped and broken to fit gaps. But it all came together perfectly.

After all the stones were in place and dry a final coat of mortar was place into each crack and brushed for a clean finished look. Just as much care went into finishing the back of this outdoor fireplace. The stone went right to the ground.

Doesn't this look great! Now get out there and build your own fireplace outdoors and start enjoying an extended deck season.
